Wall-Mounted Jib Crane (ZDSK) 50–1 000 kg, 2–8 m boom
Back to catalog

Wall-Mounted Jib Crane (ZDSK) 50–1 000 kg, 2–8 m boom

SKU root: ZDSK | Market: EN | Locale: en
Price Configure your crane below — live price, weight and shipping update as you choose.
Categories: Wall Jib Cranes
Volume pricing — save up to 12% Discount is calculated automatically on the cart subtotal.
QuantityDiscount
1 unit —
2 −3%
3–4 −5%
5–9 −8%
10+ −12%

+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.

Configure your crane

Select capacity, span and options. Price, weight and shipping update live.

1 Max capacity — kg
50 80 150 250 500 1000
2 Span — m
2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8
3 Mounting kit

Auto-suggested KF level depends on capacity and span. Type A = belts on IPE/HEA/HEB or concrete post. Type C = clamps on IPE/HEA/HEB. FCM = wall mount with chemical anchors.

4 Chain hoist

Add a chain hoist to the crane, or supply your own.

5 Manual hoist capacity

Pick the RLD model. Only models that match the crane SWL are shown.

6 Manual hoist lift

Load chain length (hand chain is always 1 m shorter).

7 Rotation locking

Mechanical lock to fix the boom in a position.

8 Rotation stops

Hard stops limiting boom rotation. Adjustable price depends on a-dimension.

9 Rotation slowing device

Damper to slow boom swing — installs without welding.

10 GP electric hoist capacity
11 GP electric hoist lift height
12 GP power supply (phase)
13 GP lifting speed
14 GP control switch / pendant
15 Lockable main switch

20A lockable main switch under enclosure (price TBD pending Comege catalog page).

16 GP safety radio remote control
17 Standpipe (3 m)

3 m standpipe to host the main switch (price TBD).

18 Paint system

Standard finish is 60µm C2 polyester powder, RAL 1028 yellow (included).

19 Packaging

Standard packing is shrink film for road transport. Wooden support is required for sea freight.

20 Structural calculation note

Optional engineering document (note de calcul) certifying the structural reactions of your specific configuration. Required by some inspectors and insurers when commissioning the crane.

21 Delivery option

Default lead time is 21–56 days. Express options reduce lead by 1 or 2 weeks at a price premium.

Request quote

Share your project details and we will get back with a tailored quote.

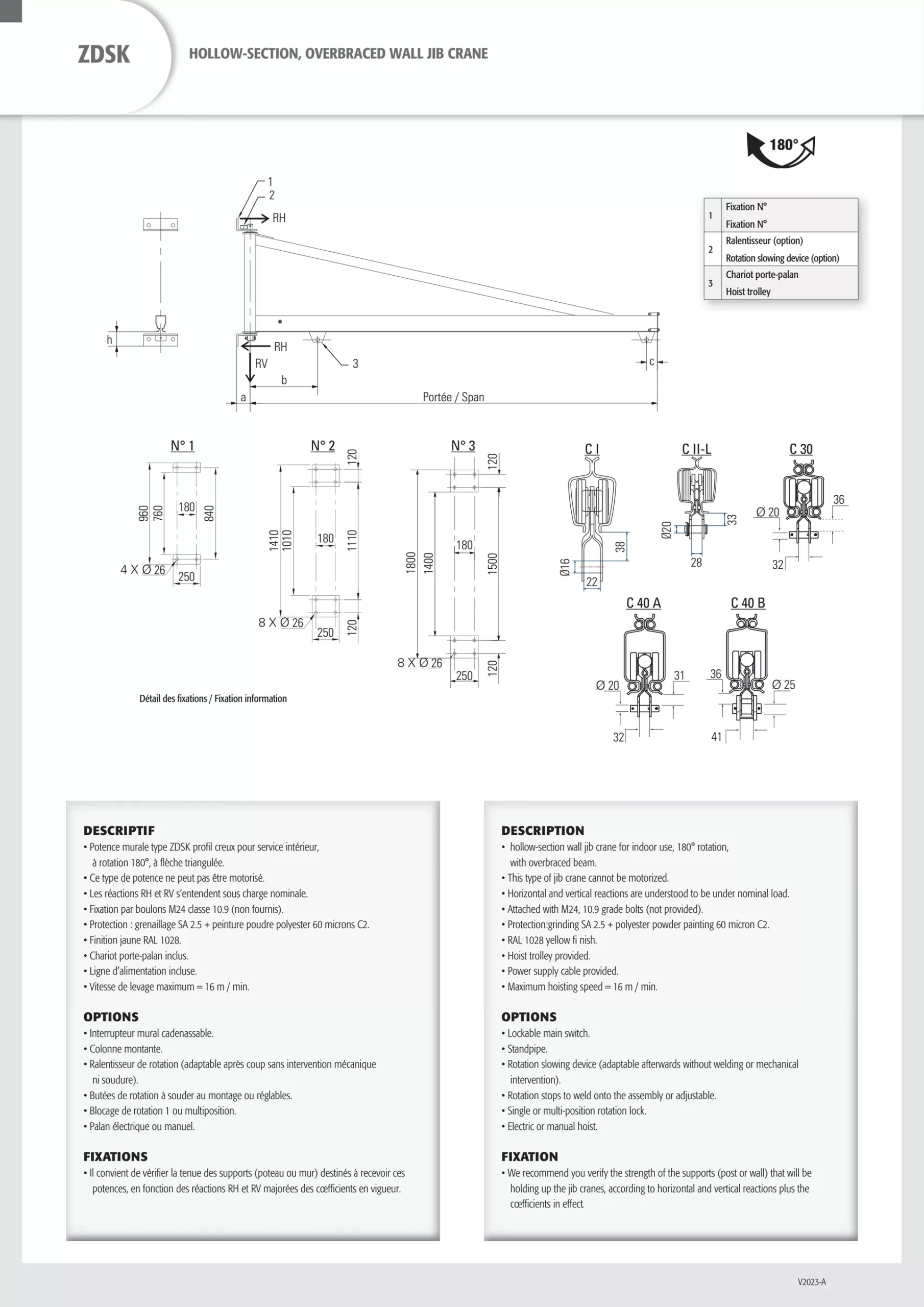

Wall jib crane with trolley for controlled travel and precise load placement.

This equipment is manufactured to order and configured according to project-specific technical requirements.

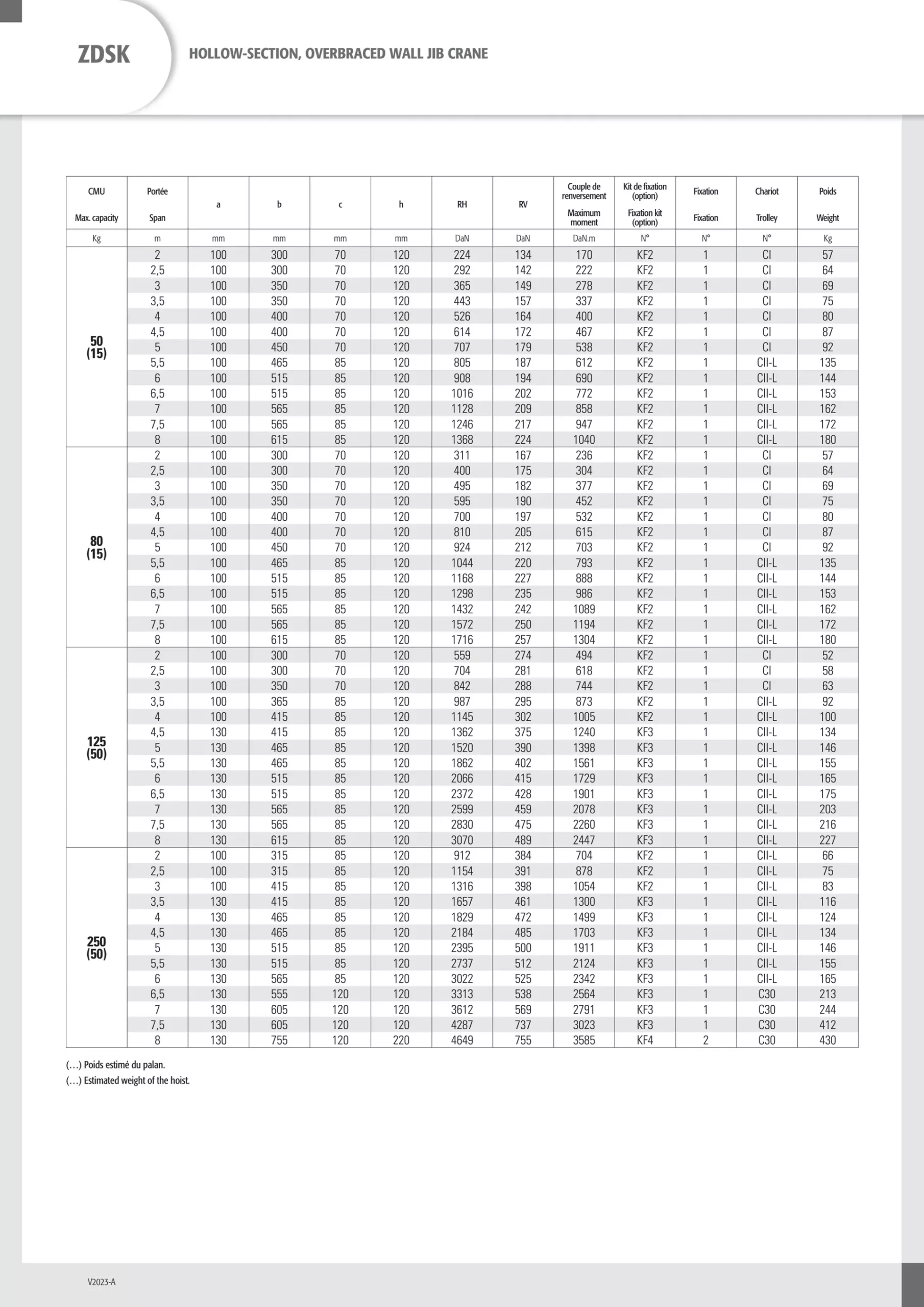

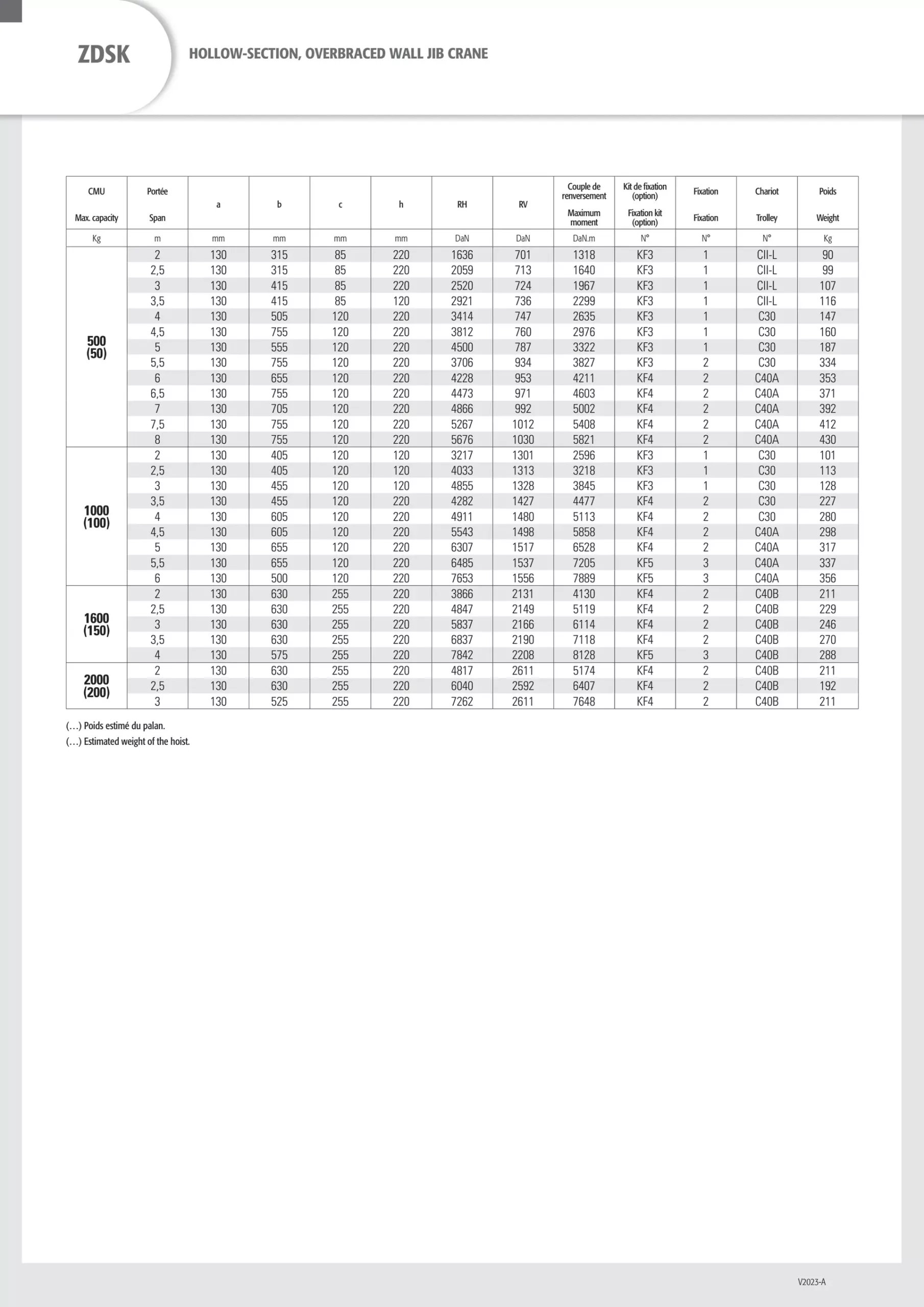

Technical overview

  • Model / SKU: ZDSK
  • Product family: Wall Jib Cranes
  • Load capacity: 1000kg, 150kg, 1600kg, 2000kg, 250kg, 500kg, 50kg, 80kg
  • Span: 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5500mm, 6000mm, 6500mm, 7000mm, 7500mm, 8000mm
  • Execution: Made to order
  • Project workflow: Quote-based engineering validation before production release

Send a quote request for final configuration, lead time and pricing.
