GIS GP Electric Chain Hoist 100–6300 kg
Back to catalog

GIS GP Electric Chain Hoist 100–6300 kg

SKU root: GIS-GP | Market: EN | Locale: en
Price Configure your crane below — live price, weight and shipping update as you choose.

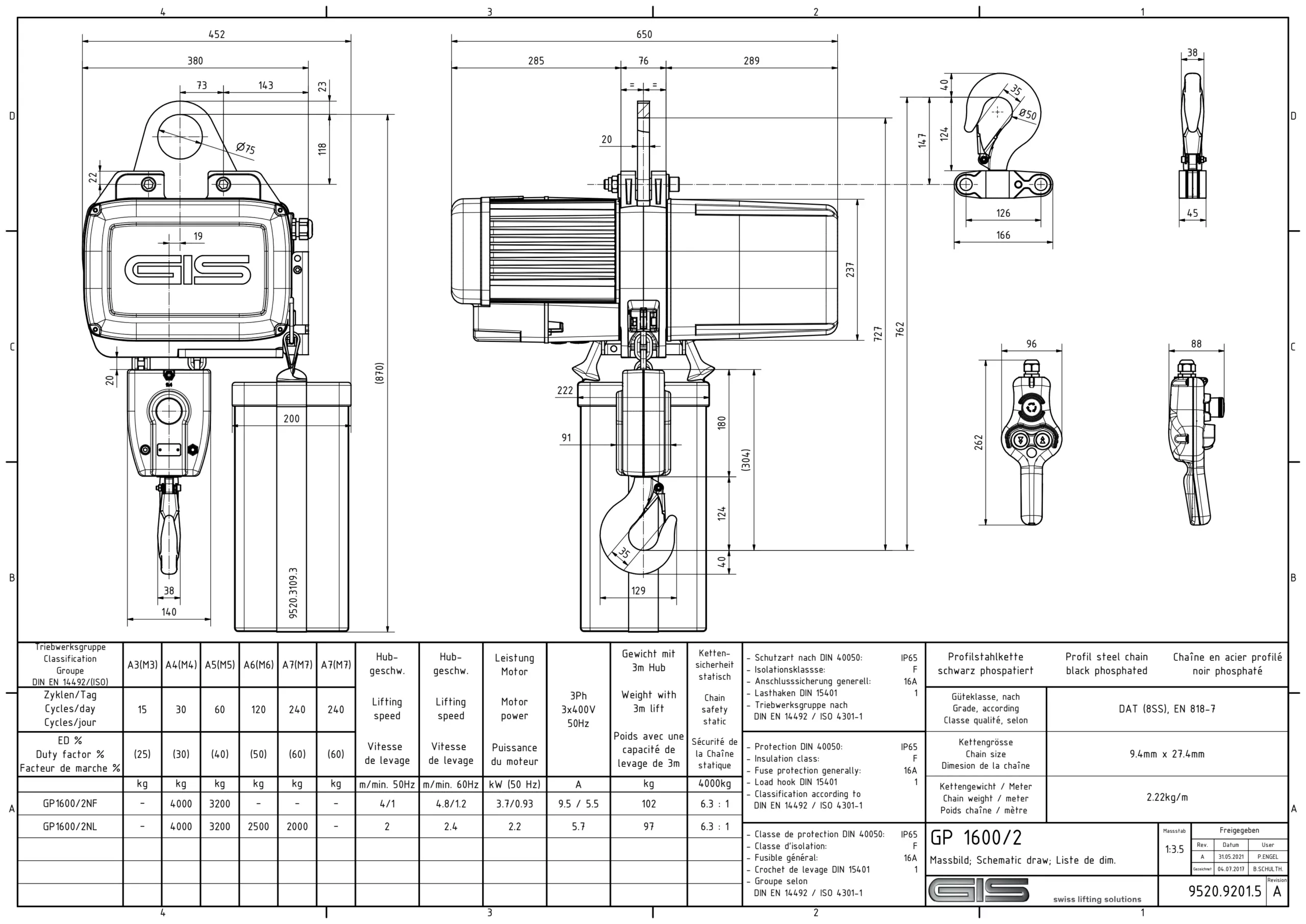

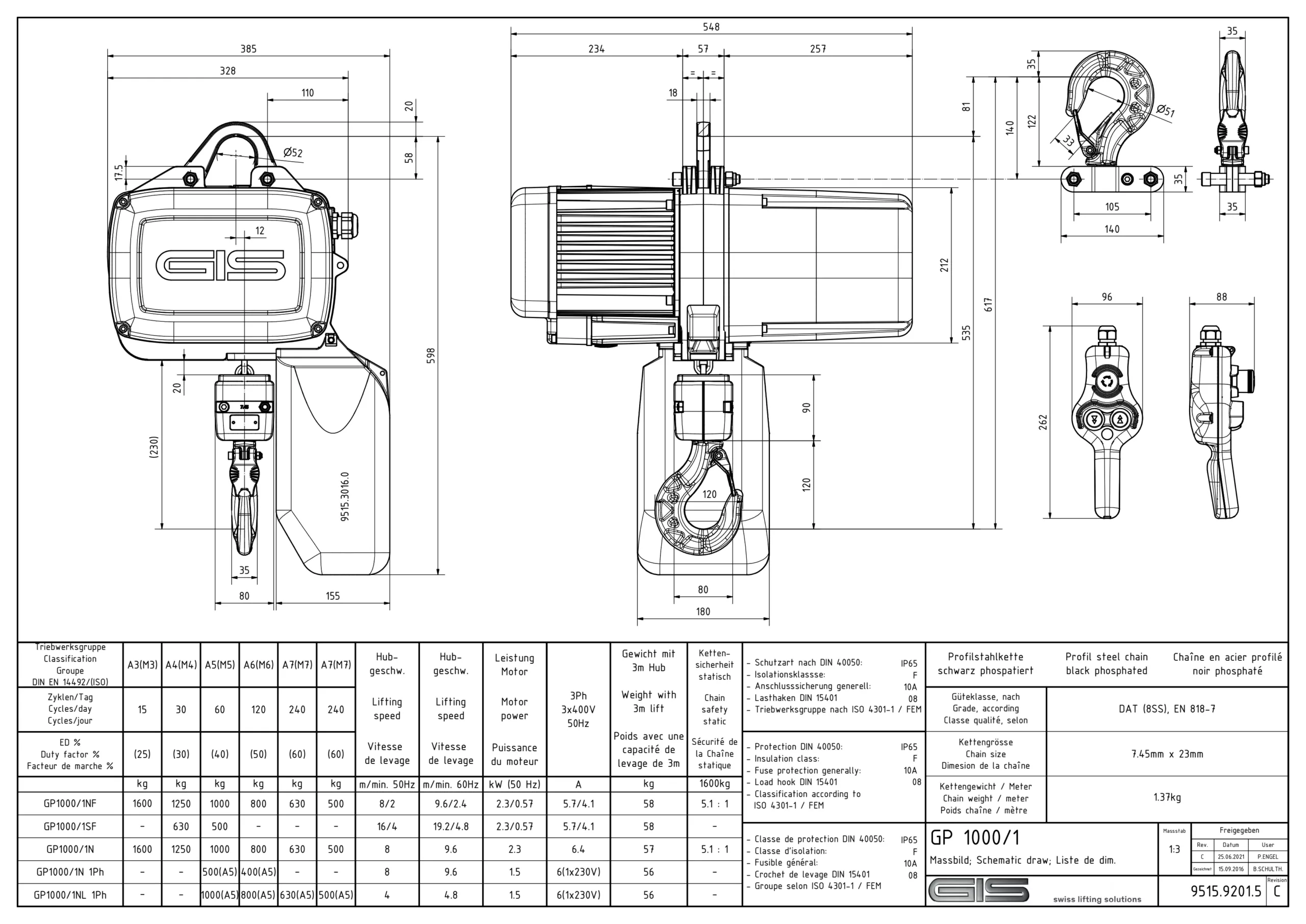

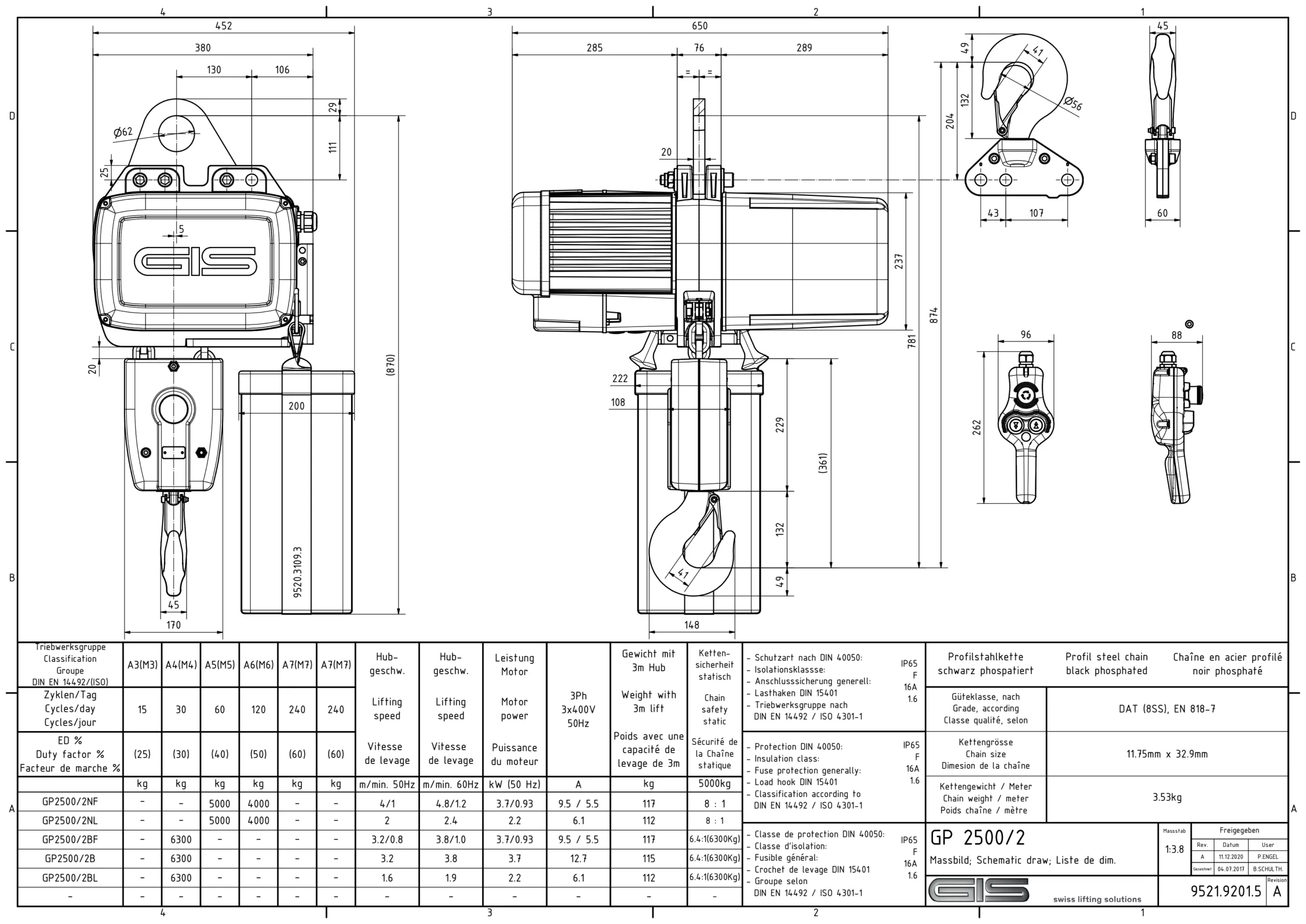

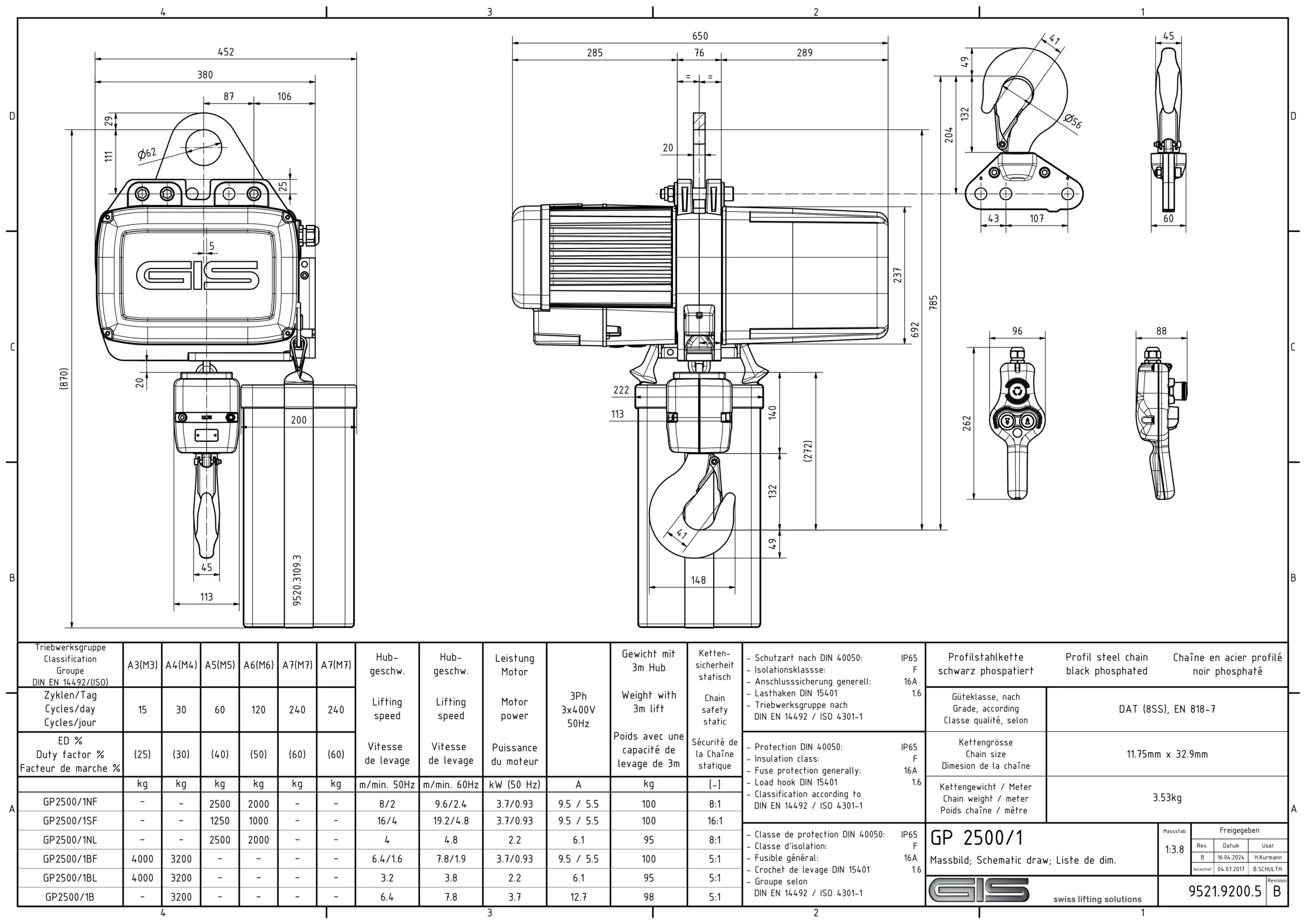

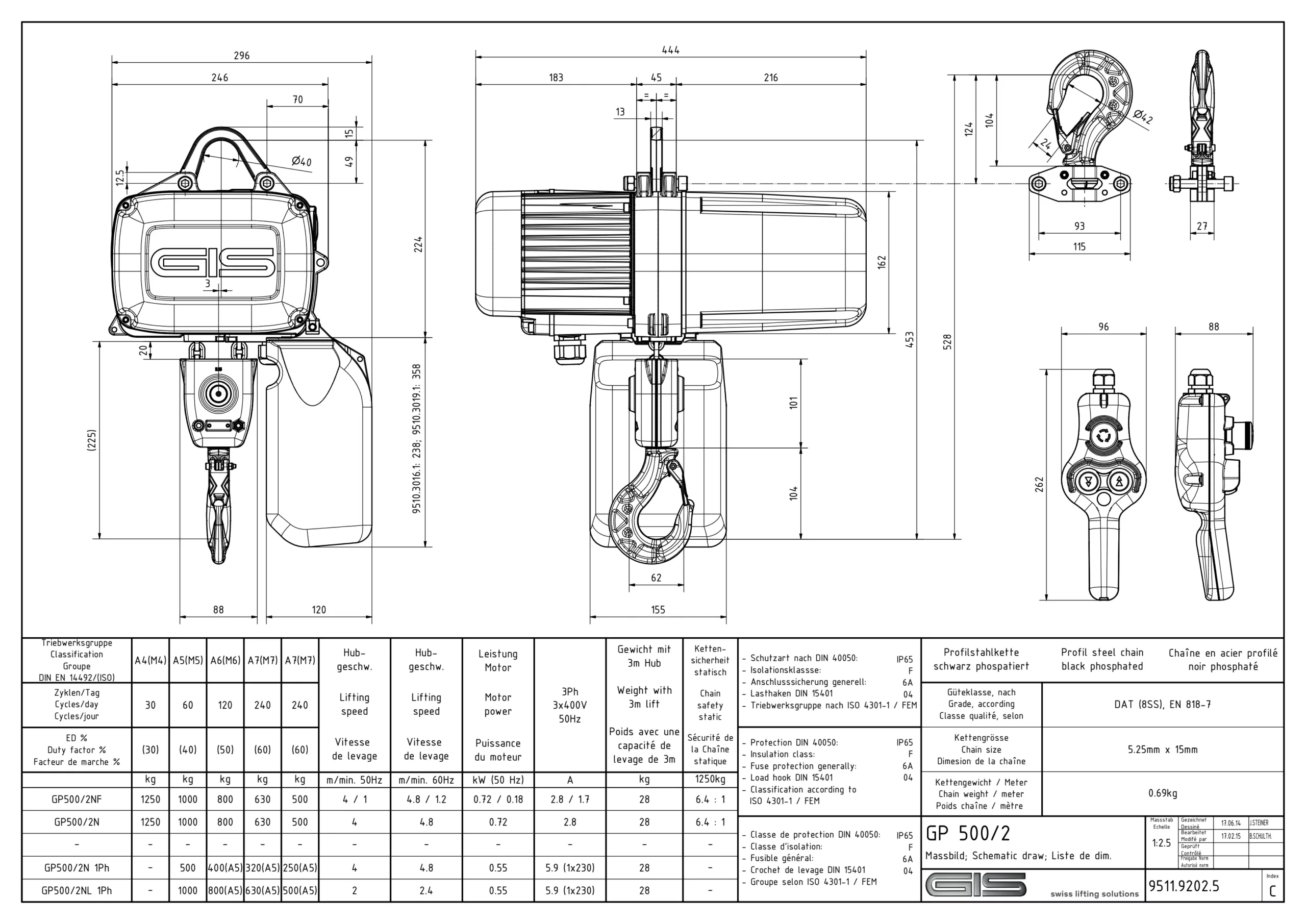

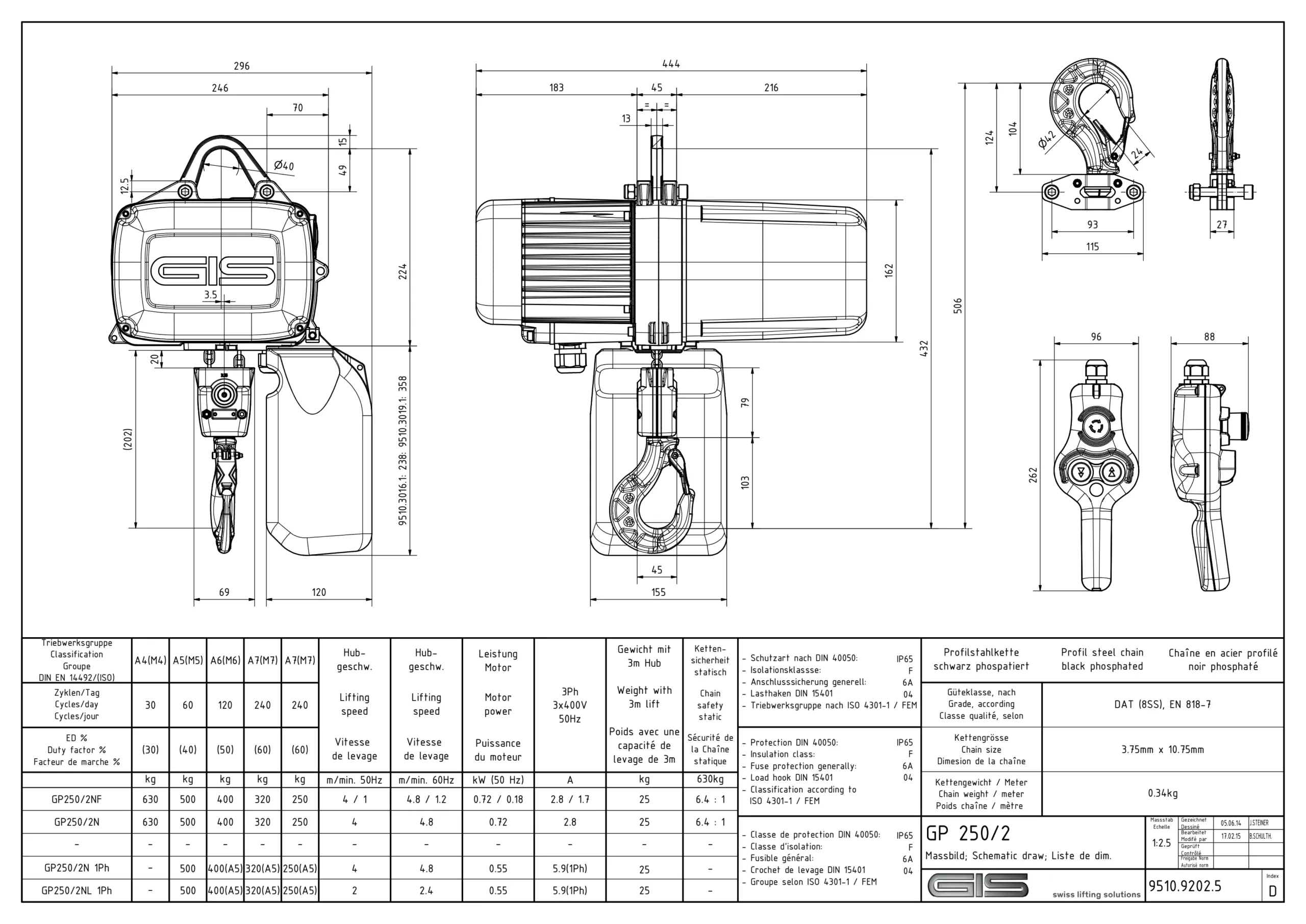

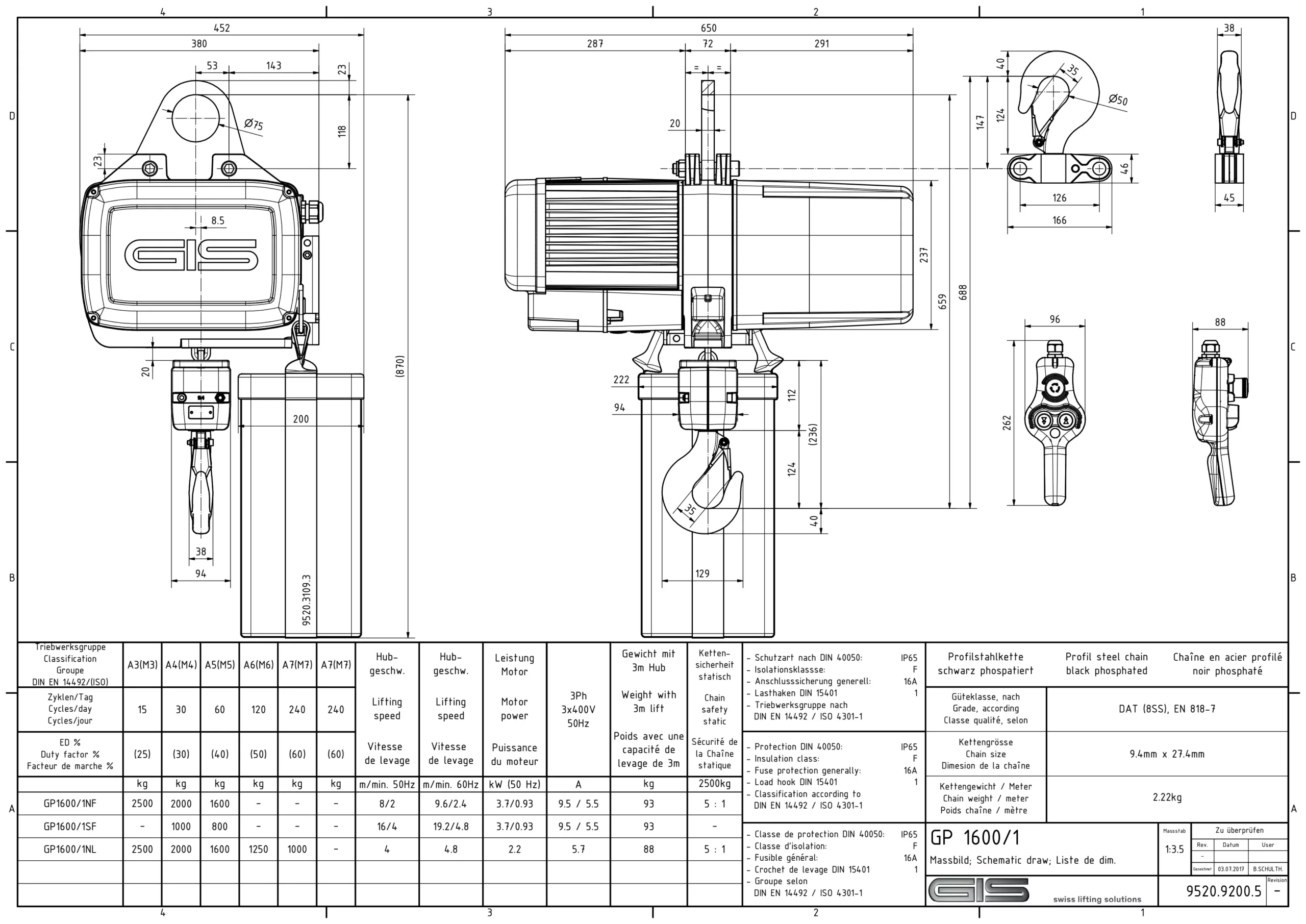

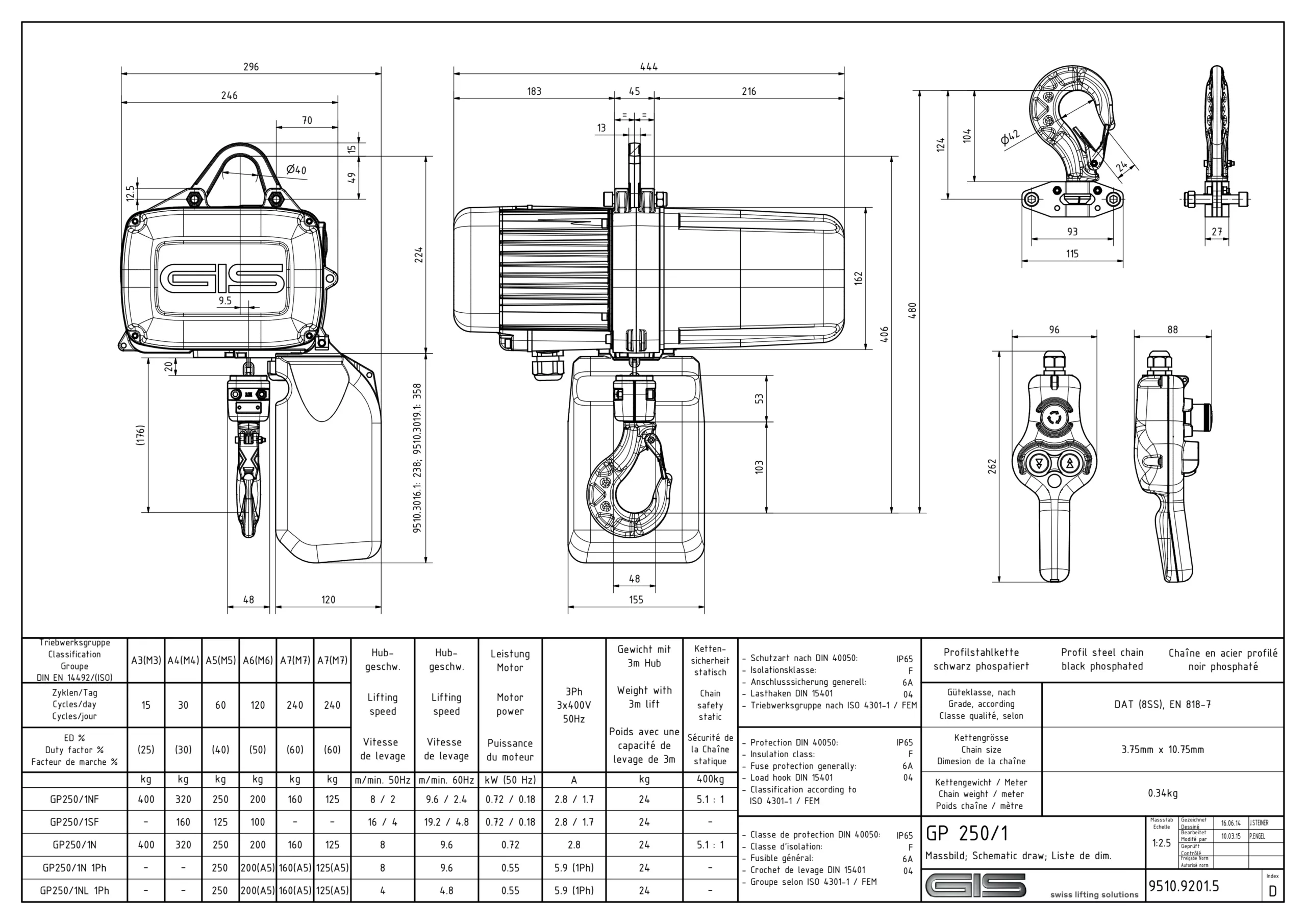

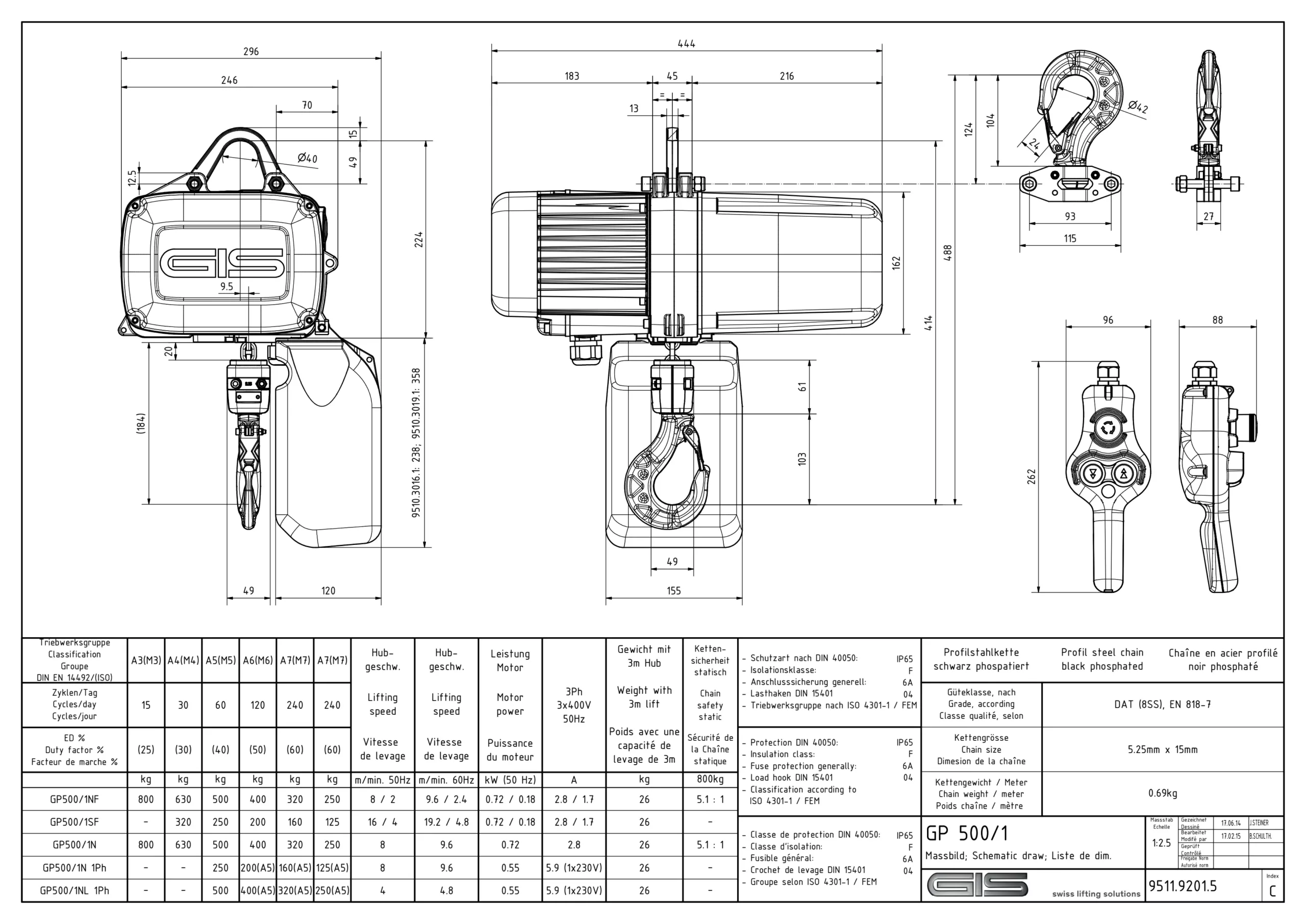

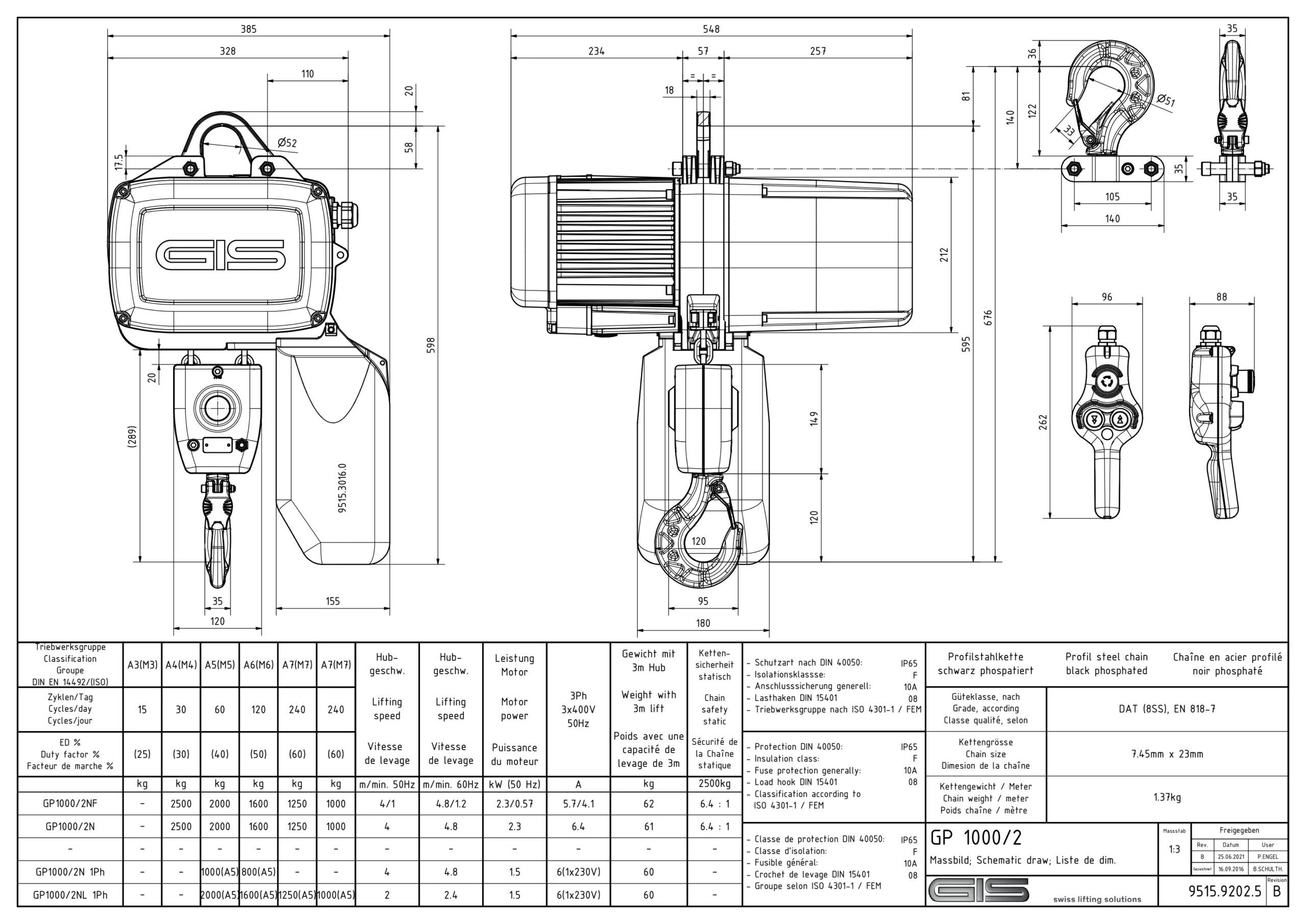

Technical documentation Brochure Flyer Questionnaire Instructions for use CE declaration Chain container GP250/1 drawing GP250/2 drawing Spare parts
Categories: Electric Chain Hoists
Volume pricing — save up to 12% Discount is calculated automatically on the cart subtotal.
QuantityDiscount
1 unit —
2 −3%
3–4 −5%
5–9 −8%
10+ −12%

+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.

Configure your crane

Select capacity, span and options. Price, weight and shipping update live.

Step 0 — required

How will you use this hoist?

Pick the closest match. Each duty class has its own capacity envelope: the heavier the use, the lower the rated weight. Selecting a class lighter than your real-world use voids the manufacturer warranty and risks motor failure. If unsure, pick the highest expected class — the hoist you actually need.

1 Lifting capacity — kg
100 125 160 200 250 320 400 500 630 800 1000 1250 1600 2000 2500 3200 4000 5000 6300
2 Lift height — m
3 4 5 6 7 8 10 12 15 20 25 30 40 50 60
3 Power supply

3-phase 400V is the workshop standard. Use 1-phase 230V for sites without 3-phase power. NF and SF speed profiles are only available with 3-phase supply.

4 Lifting speed

Single speed (N) is the standard 8 m/min hoist. Slow (NL) halves the speed for finer positioning. NF gives two-speed control. SF doubles the speed but reduces capacity by half.

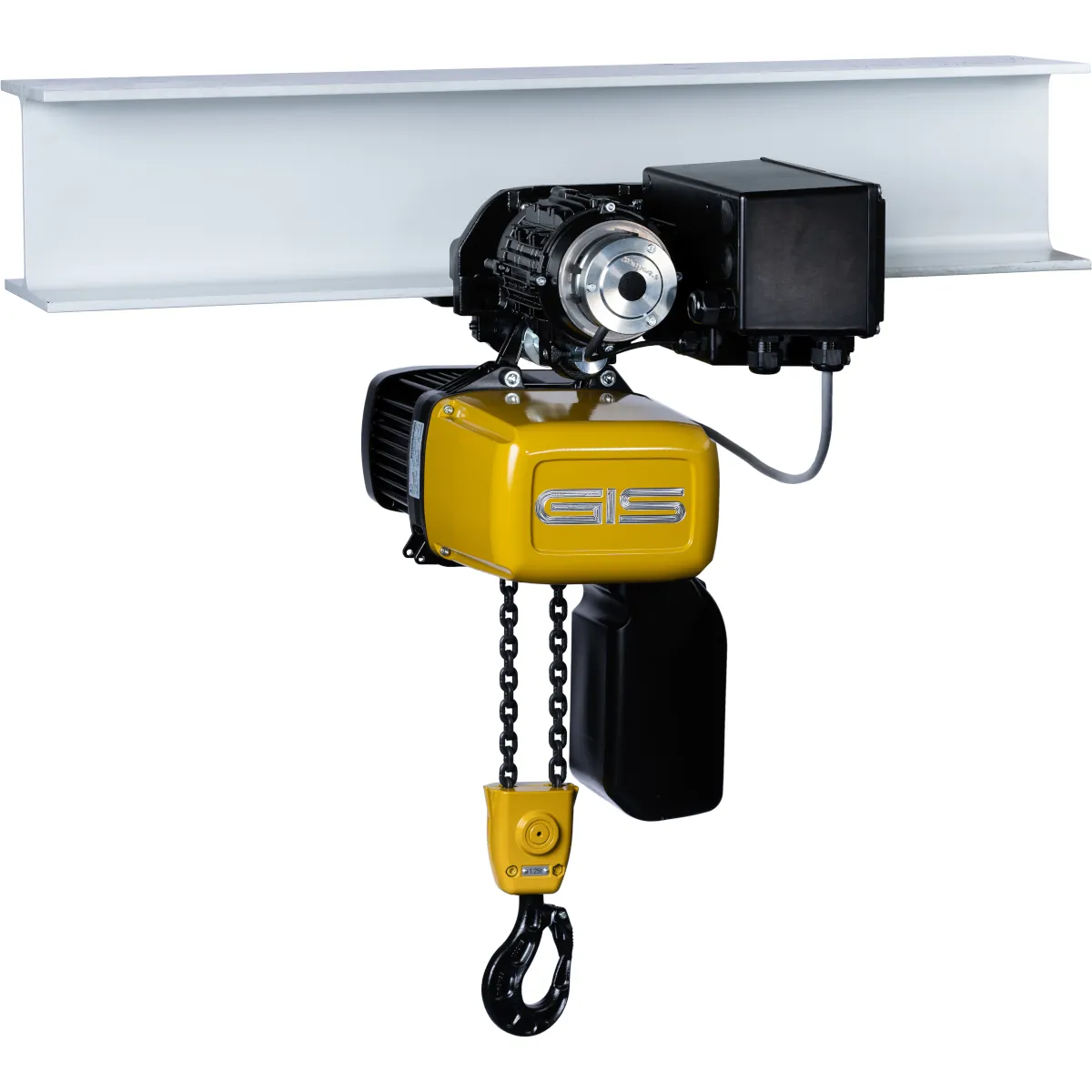

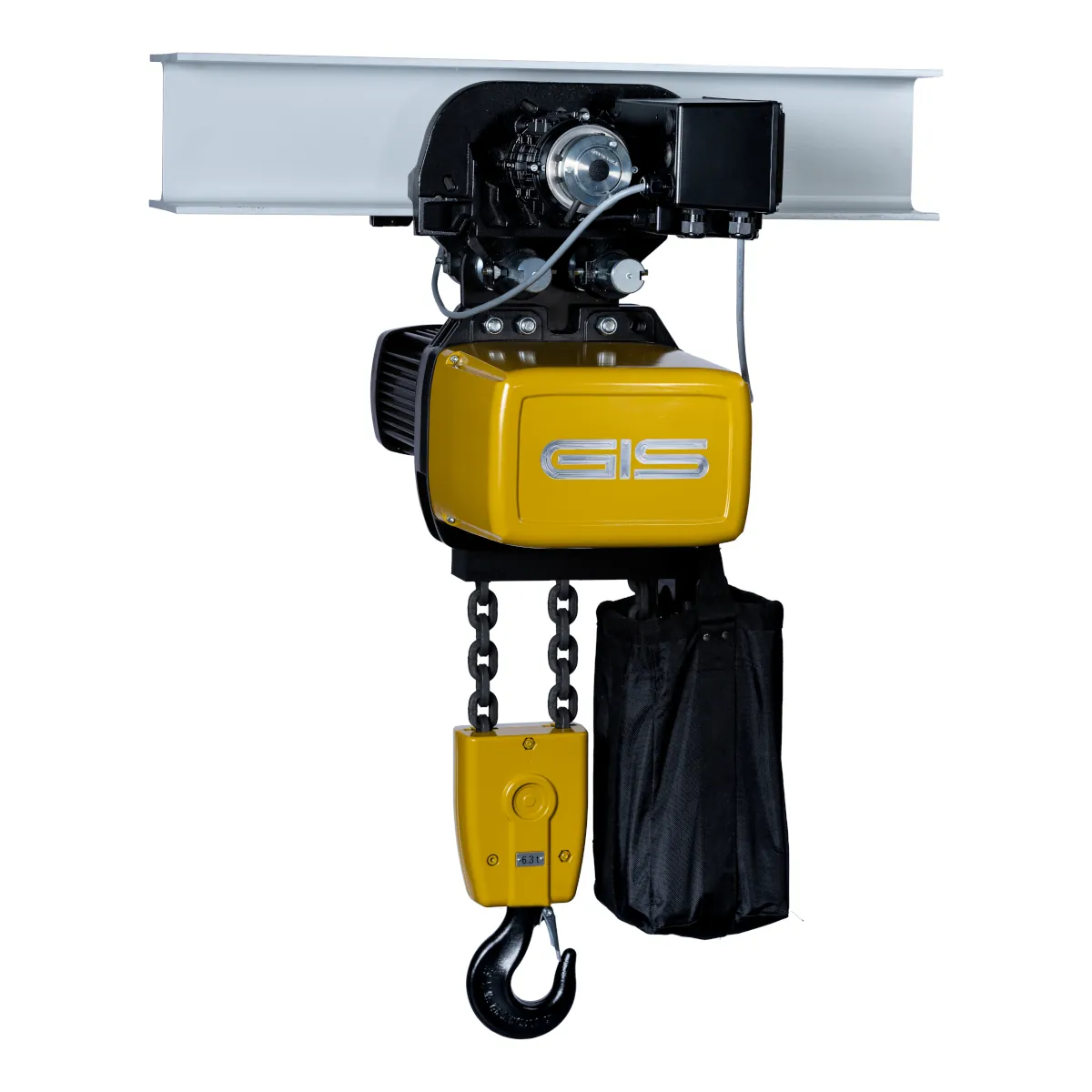

5 Suspension trolley (GHF / GMF)

Optional GIS suspension trolley to run the hoist along an I-beam. GHF is manual (hand-pushed); GMF is motorised. When a trolley is added, the hoist must be eyebolt-mounted (GIS technical rule), so the Hook suspension option becomes unavailable. Motorised GMF prices include the mandatory GMF-GP connection cable (CHF 21).

6 Flange width (beam width)

Width of the I-beam / monorail flange the trolley rolls on. Standard ranges ship ex-works with no surcharge; wider beams may add a support-bolt or counterweight attachment fee. Measure the flange (top horizontal lip) of your beam in millimetres.

7 Suspension

Eyebolt suspension is the standard fixed mount. Hook suspension lets you swap the hoist between trolleys without rewiring.

8 Chain bucket / container

The chain bucket collects the slack chain on the up stroke. Plastic is the cheapest, textile bags carry more chain, MF (sheet metal frame) versions reduce construction height for low-headroom installations.

9 Geared limit switch

Standard geared limit switch is included for 3-phase models. Dual emergency stops add a second redundant shut-off. External limit stops are required for tall installations and only work with a textile chain bucket.

10 Voltage / certification

Standard EU voltages are included. Special voltage covers non-standard motor windings. CSA/CUS execution adds North American certifications (60 Hz only).

11 Control switch / pendant

Premium switch variants apply on top of the standard pendant; the actual control cable length is selected in the next step. When a motorised GMF trolley is selected the pendant is automatically a 4-button + ES (GIS technical rule).

12 Control cable length

Standard cable matched to the lift is the GIS catalogue length (2-button: lift − 1.2 m; 4-button: lift − 1 m). Drag the slider or type any value between 2 and 60 m if you need a different length (e.g. multi-level installations). Catalogue tier prices apply when your length matches the standard for a 3 / 4 / 5 / 6 / 7 / 8 / 10 / 12 / 15 / 20 m lift; otherwise we charge basic set + per-metre.

13 Safety load hook

Replaces the standard load hook with a safety hook (latch plus higher safety factor). Required by some construction and entertainment industry sites.

14 Second brake

Adds a redundant brake for additional safety in lifting applications (entertainment industry, person-loading).

15 Thermal protection

Motor thermal protection. Klixon is a bimetal switch that physically opens the control circuit at the cut-off temperature; PTC is a thermistor that signals (no-trip variant) or shuts down the motor (with-trip variant) via a relay. These are alternative circuits — choose one.

16 Operating data counter

Tracks operating hours / cycles for predictive maintenance. Requires a 42 V control voltage (standard 3-Ph models).

17 Slack chain shutdown

Stops the hoist if the chain goes slack (load support failure). Required for some person-lifting / theatre apps.

18 Safety radio remote control

Wireless 2-button pendant with emergency stop. 42 V is the standard for 3-Ph hoists, 24 V for special low-voltage control. Selector switch lets one pendant operate multiple hoists.

Request quote

Share your project details and we will get back with a tailored quote.

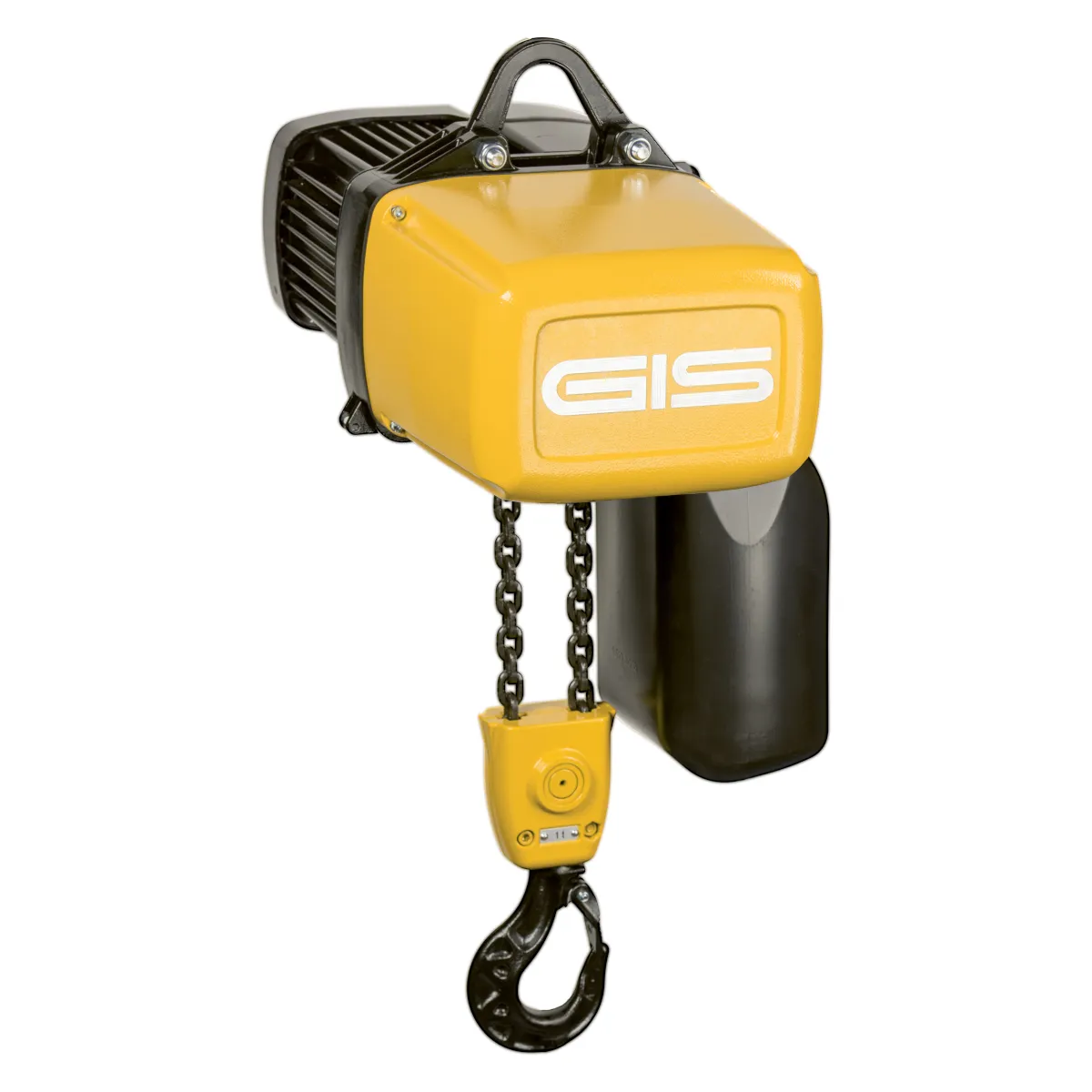

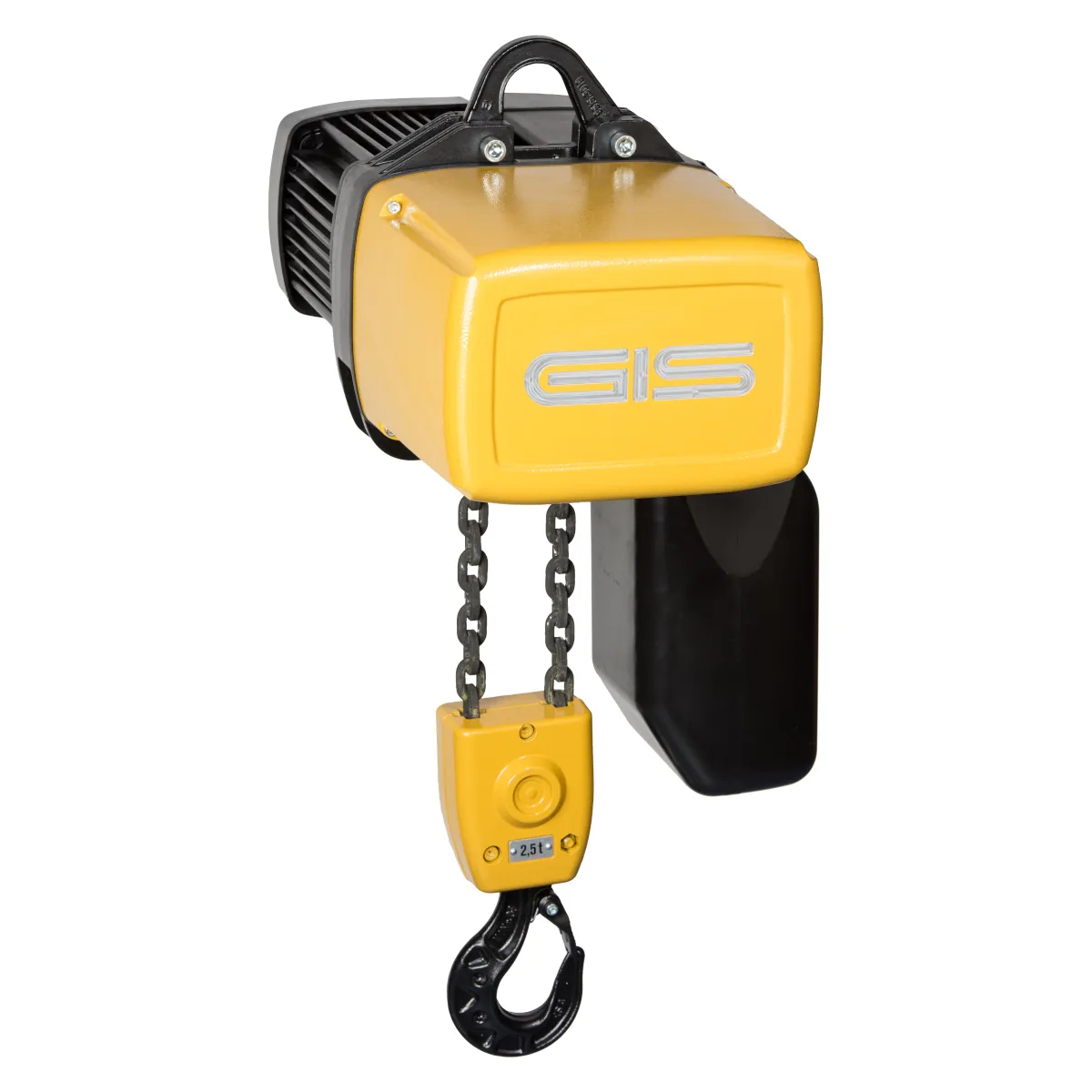

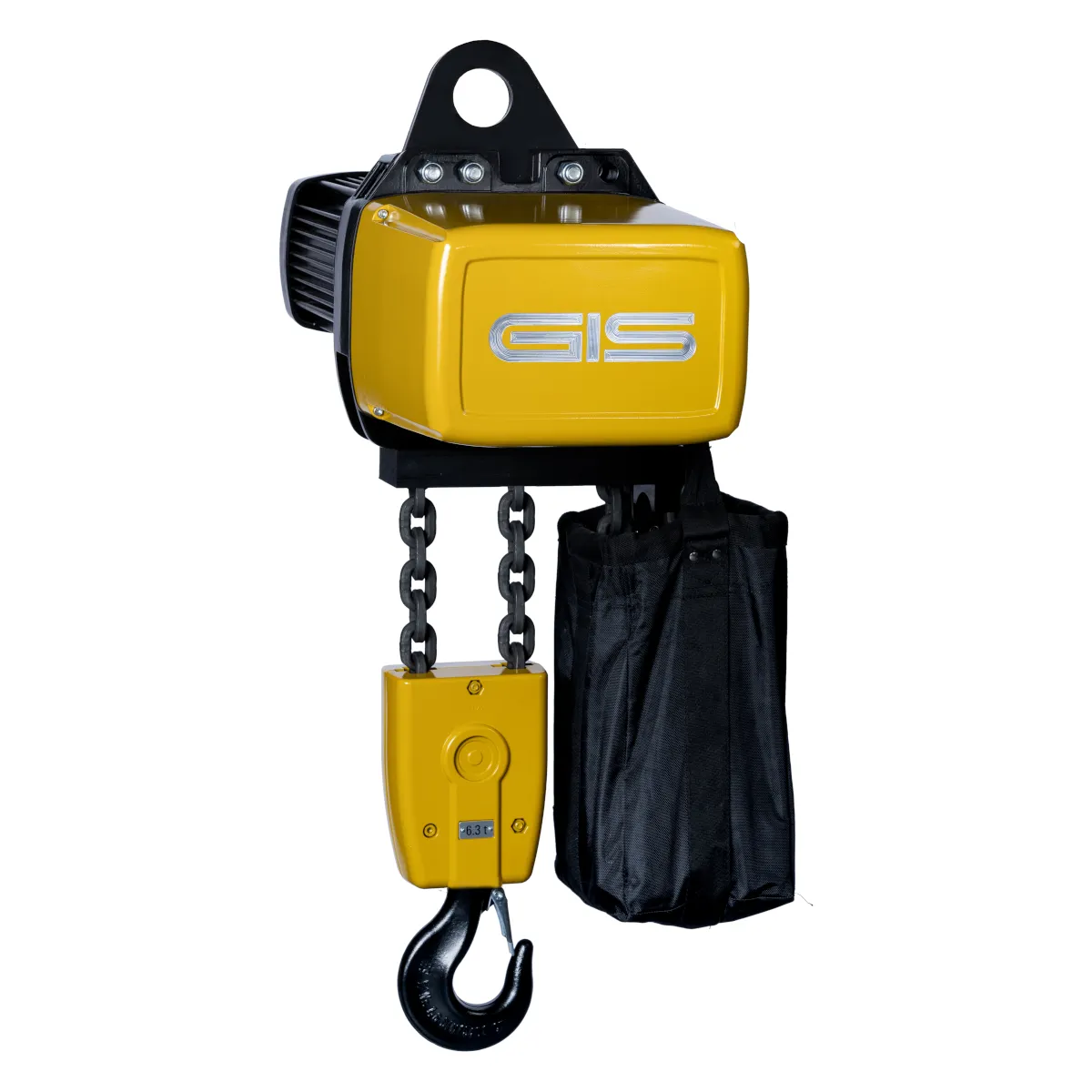

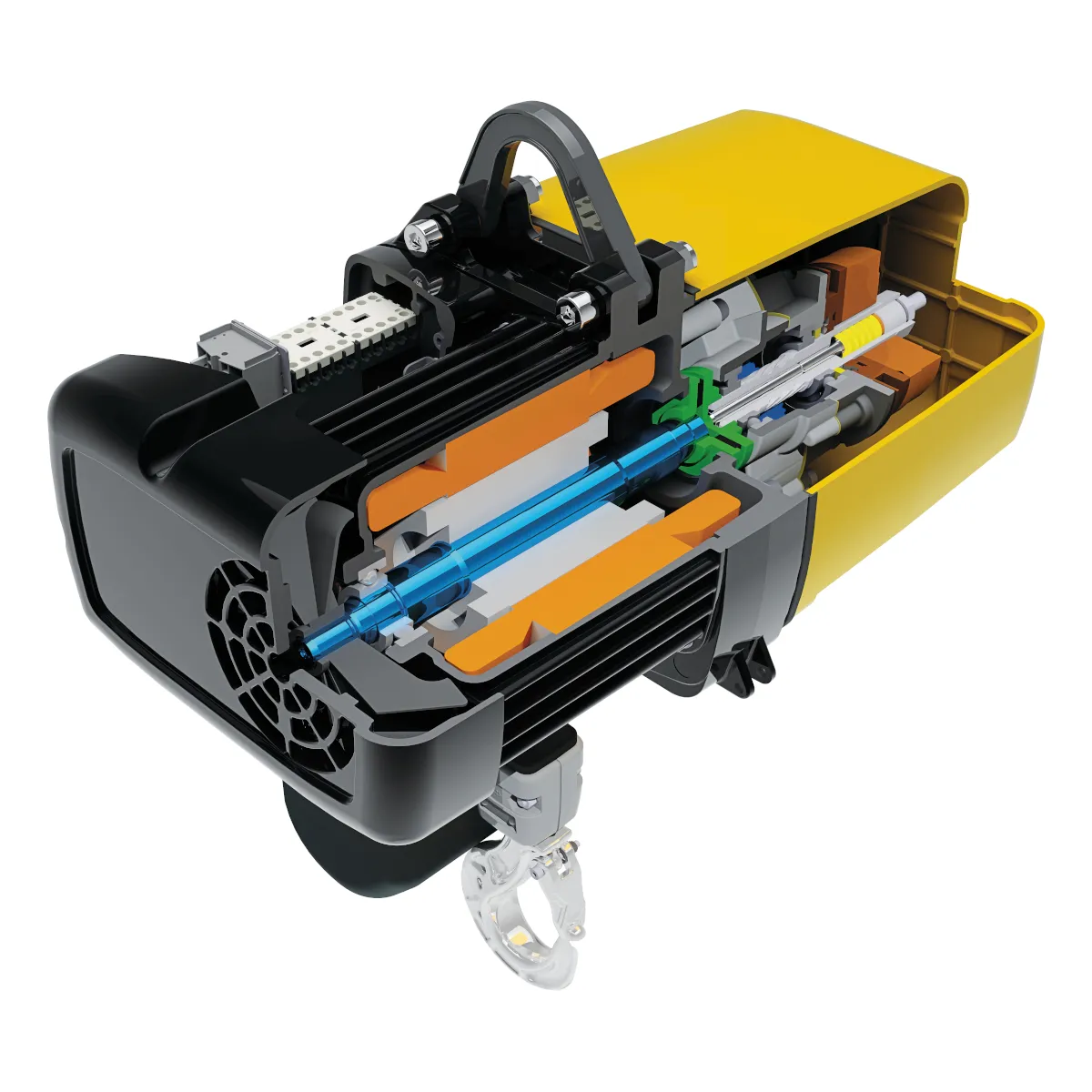

GIS GP electric chain hoist 100-6300 kg

The GP series electric chain hoists have a simple design and do not contain sensitive electronics, which reduces the risk of production downtime. They are designed for intensive use, are very quiet, and have an extremely long working life. The ergonomic control button with a low voltage of 42 V enables comfortable and safe work. Maintenance is simple, quick and does not require special tools.

GIS electric chain hoists have been developed and manufactured in Switzerland for more than 60 years. GIS standard electric chain hoists offer an ideal solution for many industrial lifting applications. Depending on the complexity of the task and the conditions at the location, we offer special GIS products. A wide range of add-ons and options are available. Electric chain hoists and GIS carts meet the requirements of the EC Machinery Directive and the relevant ISO and EN standards.



Advantages

  • designed for industrial use in the most extreme conditions
  • 3 year warranty on all GP electric chain hoists
  • the warranty is only valid if the operating conditions, inspection and maintenance intervals described in the operating instructions are observed
  • 3-phase motor 400V 50Hz
  • all GP chain hoists have standard IP65 protection
  • insulation class F
  • application range from -15 °C to +50 °C
  • chain safety factor at least 8 times (DIN EN 14492 A5, ISO M5)
  • steel chain made of manganese phosphated profile with extended service life and improved dry running properties
  • independent gearbox with permanent lubrication
  • increased safety and positioning accuracy with pioneering inverter technology and 42 V control
  • FEM classifications: A3/M3 (25% ED), A4/M4 (30% ED), A5/M5 (40% ED), A6/M6 (50% ED), A7/M7 (60% ED)
  • high FEM classification: A6/M6 for Load capacity up to 400kg and 2 speeds (double speed)
  • cranes have up to 60% more lifting capacity
  • quiet operation with 3-speed drive and spiral gear
  • Polygon connections ensure quick assembly and disassembly
  • chain hoists in three-phase or single-phase version
  • direct control, special control, radio remote control, frequency converter
  • special versions such as synchronized electric chain hoist, low-profile version, corrosion-resistant version, ATEX
  • extremely strong and wear-resistant black phosphated cargo chain
  • extended life and reduced operating costs



Properties

  • Load capacity od 100 do 630kg
  • standard lifting height 3m, control cable length 1.8m, chain and cable can be extended according to the customer's requests
  • the inverter enables precise positioning of the load, is easy to use and requires minimal maintenance
  • displacement limit switches for the highest and lowest position of the hook
  • DC spring brake
  • overload protection: the sliding clutch is adjustable and not in force
  • the robust housing made of die-cast aluminum ensures optimal cooling of the crane
  • motor thermal protection
  • plastic, canvas or steel chain container
  • control switch with 2 buttons with STOP button for emergency stop
  • top suspension with hook: the mounting suspension is very easy to install and remove
  • forged lower hook: the swivel hook eliminates twisting of the cargo chain
GIS GP Electric Chain Hoist 100–6300 kg From 2.257,65 EUR
